Dynamo-Alternator

(Code: 520C40)
Dynator Type : Lucas C40 Negative Earth
£384.00
Manufactured To Order
Available in 10 days
Add to cart

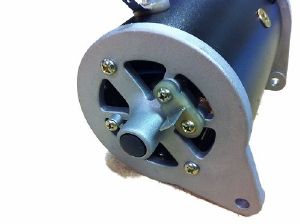

This is in essence a powerful 45amp alternator inside a dynamo casing.

These units are direct replacements (incorporating a regulator) of the original Lucas dynamo, and further retain the period appearance by utilising the original wires already in place.
They contain the workings of our lightweight 45amp race alternators inside the original steel dynamo case - thus halving the weight and more than doubling the output of the original units, while retaining the exact original appearance.
These are brand new products, thus not requiring any exchange or part of your old unit

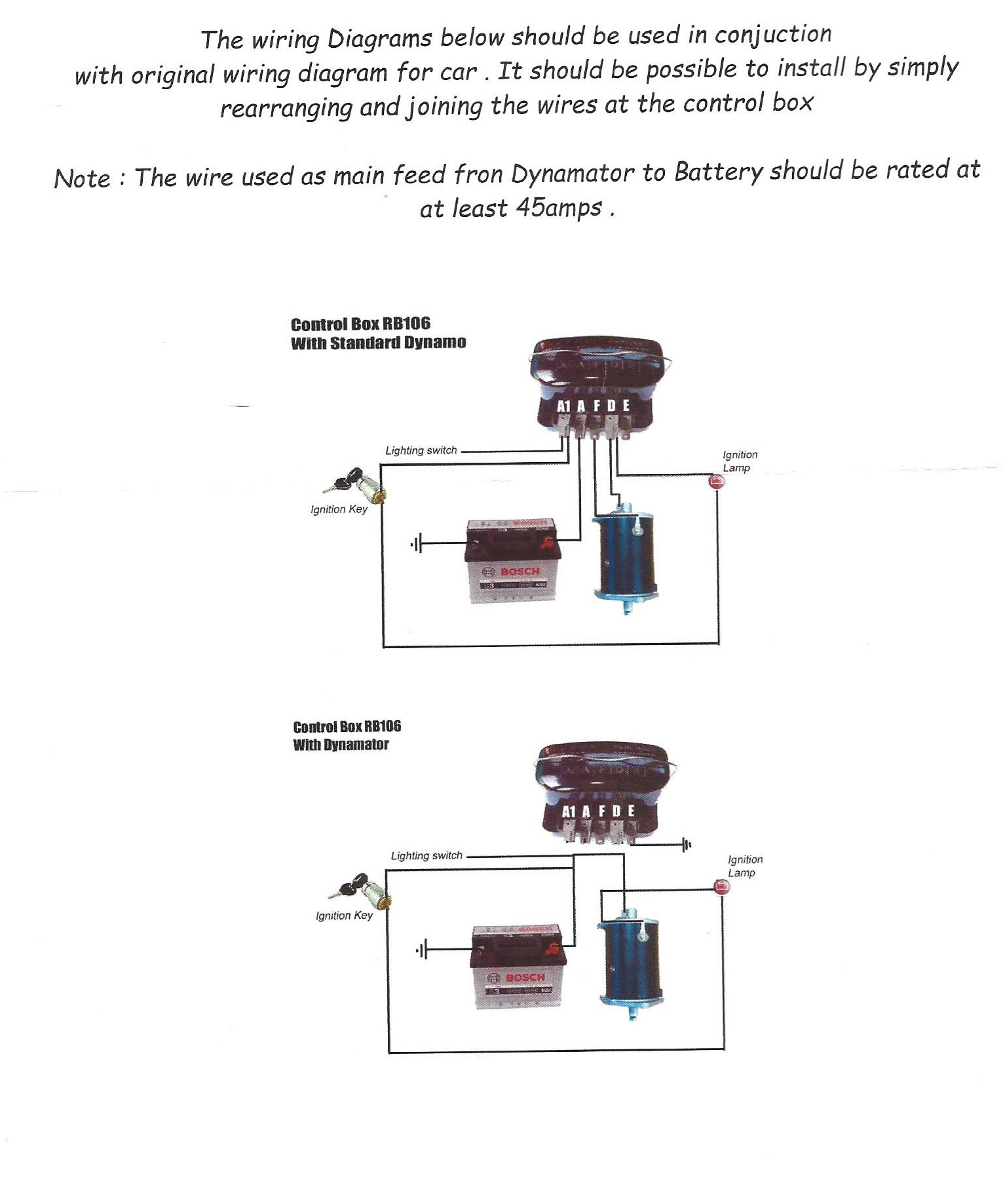

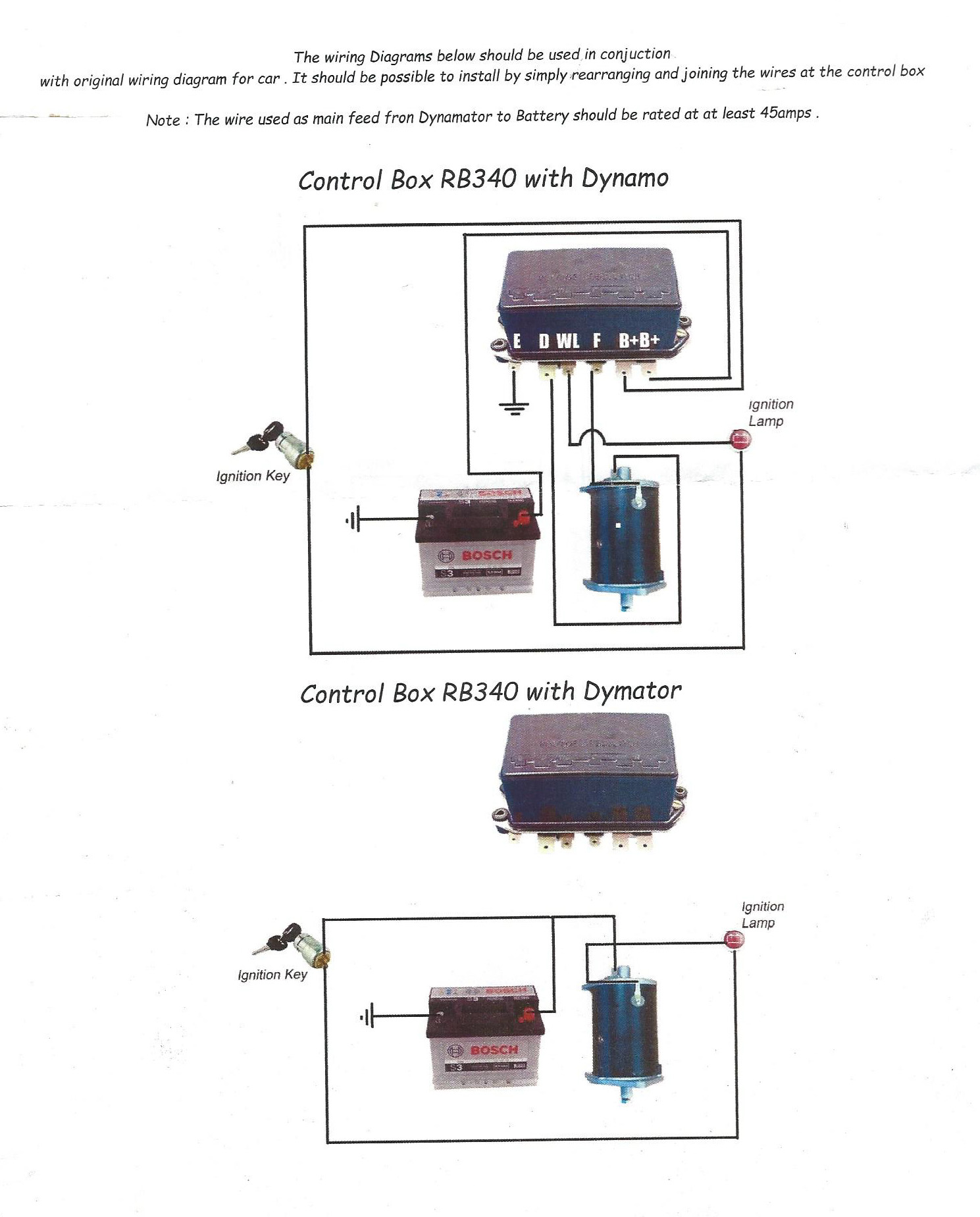

Fitting: Fitting may require the same minor electrical modification as converting to alternator (no bracketry changes are required as this unit bolts directly in place of the dynamo). The bulkhead mounted regulator (usually a RB340 or RB106) can be removed altogether as the dynator is internally regulated, alternatively if it is kept in place for the purposes of originality then it can be used as a junction box by joining the pins of the field wire and ignition warning light wire inside the control box. A pictorial fitting guide courtesy of Classic Ford magazine is here

Your application is not listed below? We can supply to order a version of any Lucas dynamo, including versions with tacho drives, 3 bolt rear drives, peg mounted etc
50amp output not sufficient? We would be pleased to quote to build a custom unit to your specification.
Positive earth vehicle? We would be pleased build a positive earth version on demand.
Please contact us
Code Dynator Type  Price
520 C39  Lucas C39 Negative Earth  £384.00 Details Buy
520C40  Lucas C40 Negative Earth  £384.00 Details Buy
520 C40L-H  Lucas C40 Positive Earth  £517.20 Details Buy
520 C40R-H  Lucas C40L Negative Earth  £408.00 Details Buy
520 C40Long  Lucas C40L Positive Earth  £481.20 Details Buy
520 C45  Lucas C45 Negative Earth  £640.80 Details Buy
