Flexible Hose & Fittings

Information On Stainless Braided HoseSuitable for petrol, ethanol (E10- E85 compatible), diesel, oil, water, brake/clutch, ATF fluid
Available in internal diameter sizes of  1/8" (3.2mm) 1/4" (6mm), 5/16" (8mm), 3/8" (10mm),  1/2" (12mm)
1/4" (6mm) and 5/16" (8mm) can be fitted with rubber ends & worm drive clips or MagnaClamps,

Greatly outlasts ordinary hose.
Protective braid greatly reduces possibility of breakdown through chafing.
Stainless reflective weave helps prevent fuel vapourisation problems.

This hose was originally marketed as a fuel hose upgrade since the 1960s under the Smiths Petroflex brand, it gradually became available for all fluid transfer applications.
(Code: 581)
Zinc Plated Clip for Stainless Braided Hose 1/4" (6mm) & 5/16" (8mm) ID HoseSuits stainless braided hose with ID 1/4" (6mm) and 5/16" (8mm) as well as all flexible hoses with outer diameter (OD) 6-17mm
Zinc plated steel construction
(Code: 61 Clip Zinc)
Stainless Clip for Stainless Braided Hose 1/4" (6mm) & 5/16" (8mm) ID HoseSuits stainless braided hose with ID 1/4" (6mm) and 5/16" (8mm) as well as all flexiblehoses with outer diameter (OD) 6-17mm
All stainless construction
Discount on quantity
(Code: 61 Clip Stainless)
Machine Drive Clip for Stainless Braided Hose 1/4" (6mm) & 5/16" (8mm) ID Hose
Covers hoses external diameter 15-18mm
Zinc plated
(Code: ClipHoseMini15-18)
Stainless Braided Hose Rubber Endcap CapBlack rubber endcap for use on braided hose.
Solves problem of the braid fraying on cut pieces of hose. Also results in a neater finish and gives the clips a stronger grip.
(Code: 606mm)
Stainless Braided Hose
  • Greatly outlasts ordinary hose
  • Precise fit - no leakage
  • Protective braid greatly reduces possibility of breakdown through chafing
  • Stainless reflective weave helps prevent vapourisation problems on fuel line and boiling issues when used for brake and water lines.
  • High performance 304 grade stainless - the best available
  • Ethanol compatible
  • Nitrided rubber internal section (with reinforcement stranding, unlike some cheap imported versions on the market) on all sizes except 1/8" which is nylon reinforced as suitable for high pressure brake & clutch line.

Available in a range of size of internal diameter:

  • 1/8" (3.2mm) is used for brake and clutch line. Swaged fittings must be used in this high pressure application. Although somewhat over-engineered for the purpose we have also seen this hose used for washers, dizzy vacuum hose and other micro bore applications to good effect.

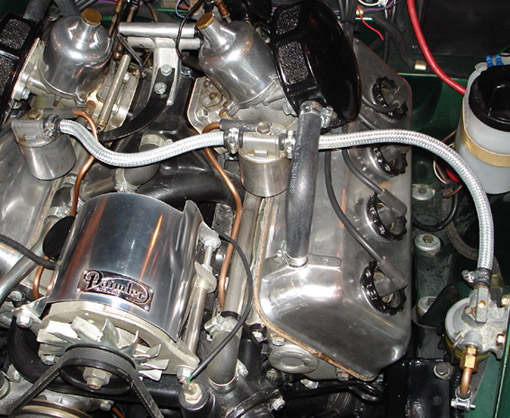

  • 1/4" (6mm) or 5/16" (8mm) is used for most classic car fuel lines
  • 3/8" (10mm) is used on most classic Jaguars & the vast majority of American classics
  • 1/2" (12mm) is usually employed for water and oil line hose
  • Use with MagnaClamps or Rubber End Caps, or swaged fittings (swaged fittings must be used for brake line)

Sold per metre - eg if 10 are ordered you will receive a continuous length of 10m; maximum continuous length 30m
Discount on quantity
(Code: 47 Braided Hos1-8 32)
MagnaClamp for Braided Hose. Chrome.Replaceable internal stainless worm drive clip.
Replaceable & reusable.
Can be rotated to hide worm drive clamp on fitment for neatest installation
Provides secure fastening with all types of hoses, usually used on braided line. Does not require use of rubber end caps.
Discount on quantity
(Code: 3986mm)
